AIR PALLET PACKAGING SYSTEM
Nov 01, 2000

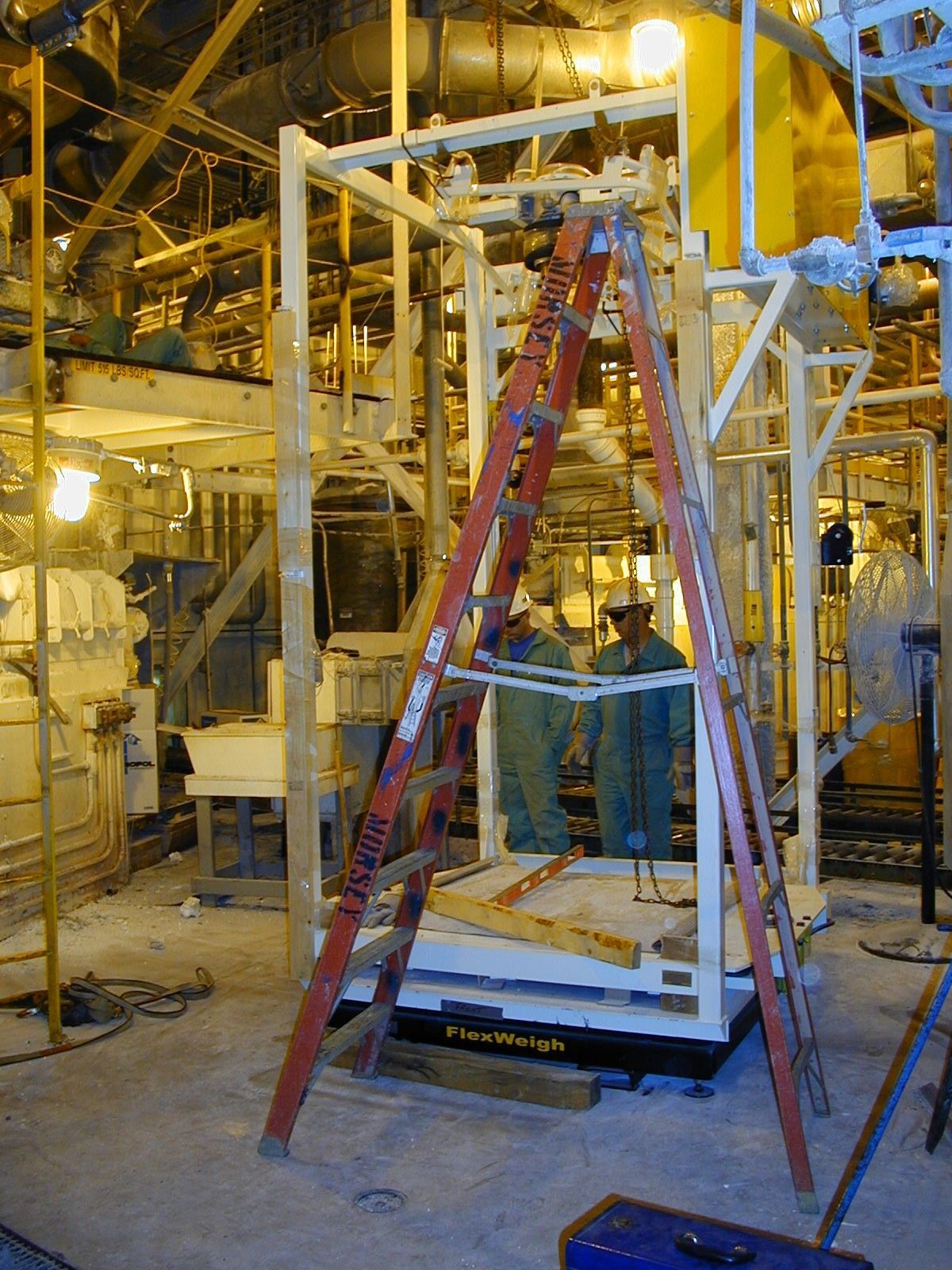

Matrix Engineering provided the structural, mechanical and electrical engineering for the addition of an air pallet fill stand to an existing box packaging system. The product handled was very hygroscopic as well as overly free flowing - capable of bridging the discharge or flowing uncontrollably. We used a positional butterfly valve on the packaging bin discharge with a control loop to position the valve based on the throughput rate from the fill stand scale. Level instrumentation was also used for preventing material from backing up in the delumping mill.
Much of the complexity of this project involved sizing an incline screw feeder between the hopper and fill stand large enough to handle instantaneous flooding with control logic to watch and adjust the average throughput to keep the screw running in the 15% - 30% full range. This helped to minimize the challenge to the inlet end seal on the screw conveyor.
More Projects & News
Matrix provides a PLC based TUGMONITOR for a 6000HP TWIN ENGINE NEW BUILD. Communicates seamlessly via ethernet with GE Engines.
Matrix provided conceptual and hard mechanical design of a heavy duty screw feeder for metering phosphorus pentoxide (crystallized phosphoric acid) into a dissolve tank. Due to the hot reaction during hydration in the tank (resulting into very hot phosphoric acid) the variable speed screw feeder consisted of a 316L S/S 12 inch diameter auger and 1/2 inch thick trough. A special dump hopper with automated closing lid was designed with a large grated opening and bypass chute at the inlet of the feeder. Very special design considerations were made for protecting the conveyor seals and bearings from making contact with the hot acid. Our design allowed the acid crystals or hot liquid to fall out into an isolated gap and into the tank before it challenged the seal. This was a highly successful design has virtually eliminated the huge stock piles of drummed feedback material that accumulated due to the inability to dissolve the crystallized acid safely.
Matrix Industrial Systems was proud to work in conjunction with AC Marine in designing and supplying critical systems for Georgia Aquarium's newest venue to experience sharks directly with the grand opening of their 1.2MM gallon Shark Tank. This attraction allows you to submerge into the tank within a shark cage and begin an underwater journey traversing the pool as it is suspended and moved by a hoist/monorail system. Breathing air for the participants is supplied through an umbilical tethered to the cage and connected to a specialized Breathing Air Control System (BACS). Matrix supplied and installed this system with its umbilical as a turnkey project. Matrix and AC Marine were proud to be guinea pigs (or should I say SHARK BAIT) on the maiden voyage!
