MATRIX PROJECTS

DENSE PHASE TRANSPORTER REHABILITATION

Feb 01, 2010

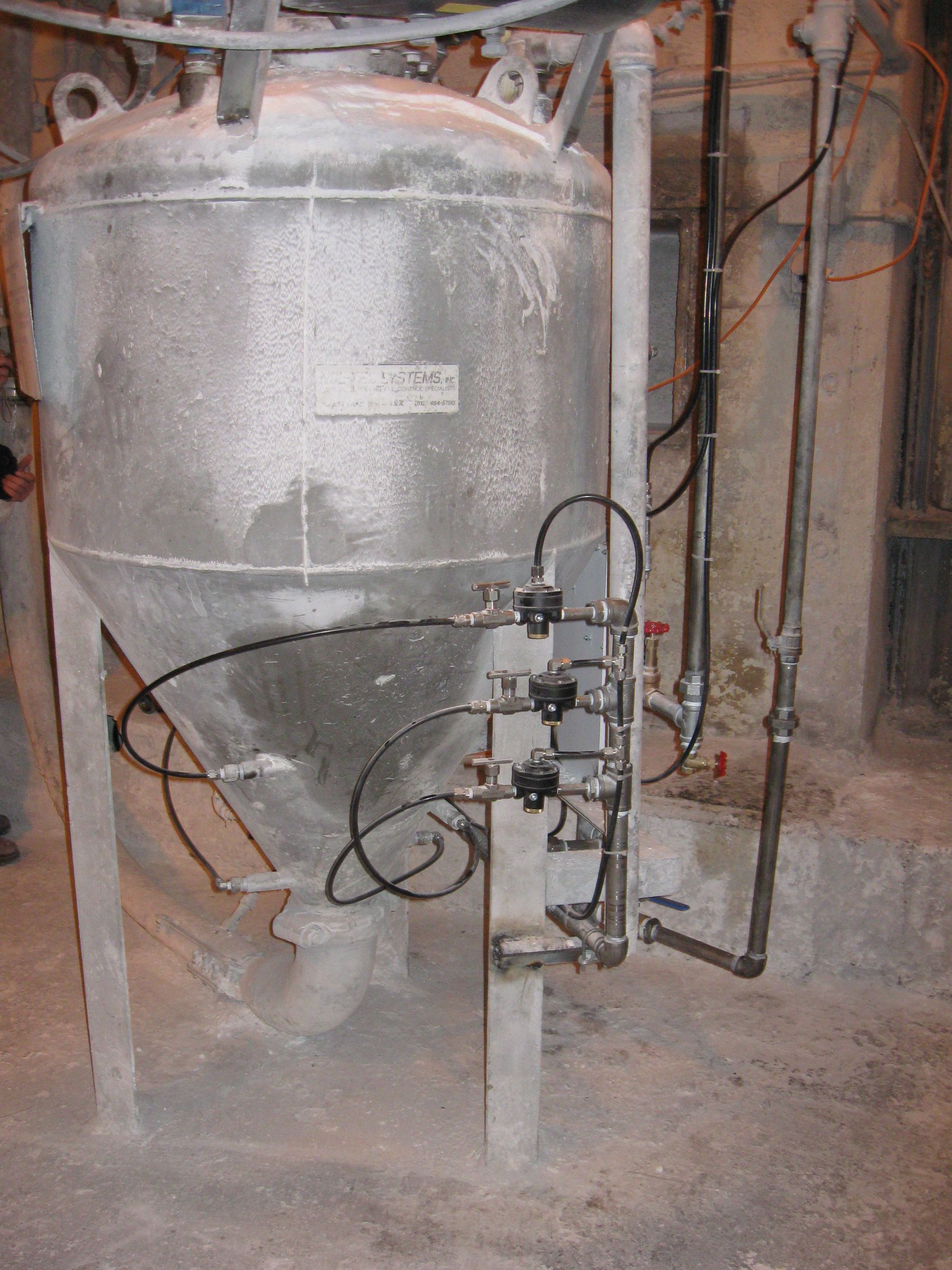

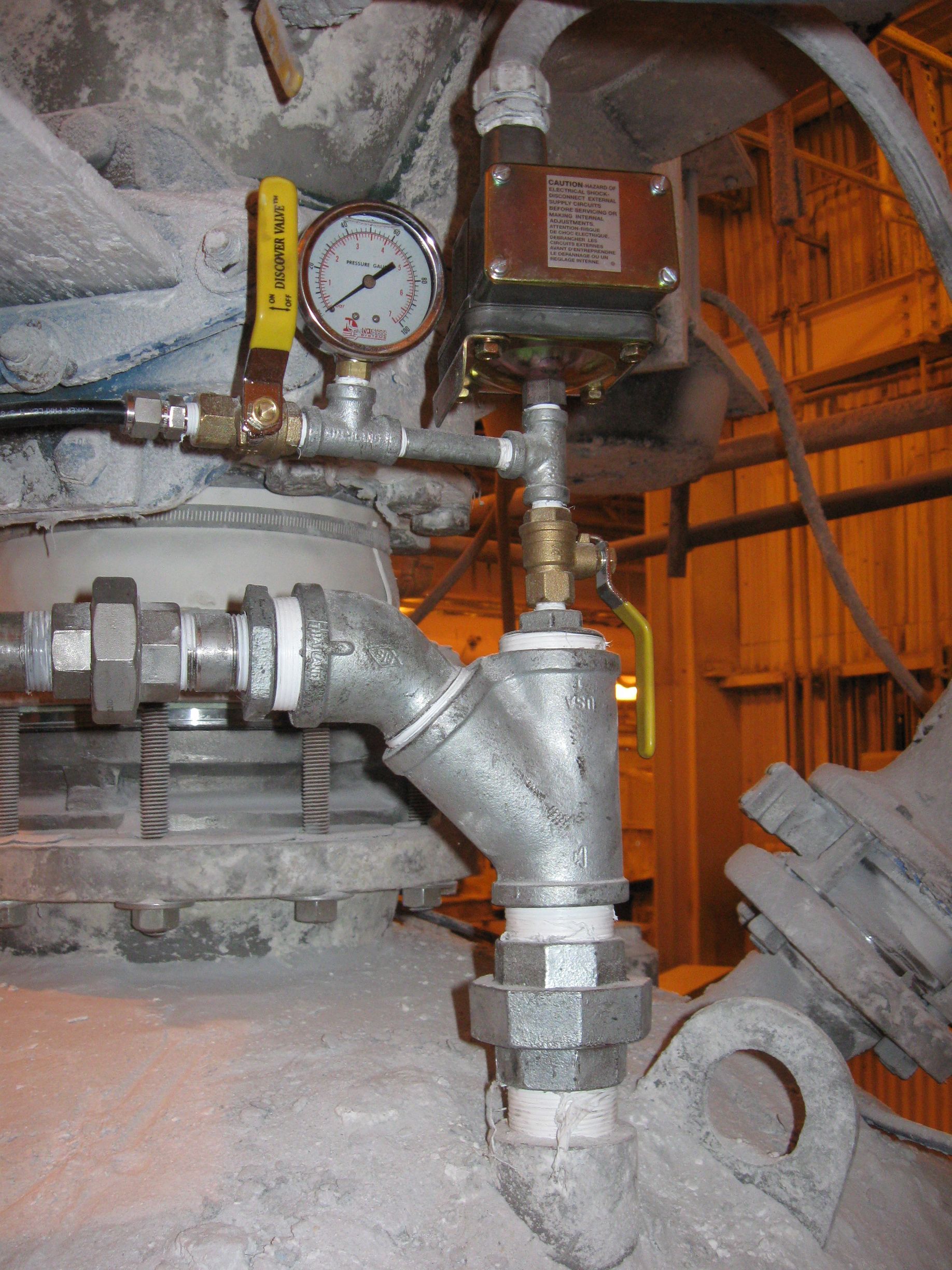

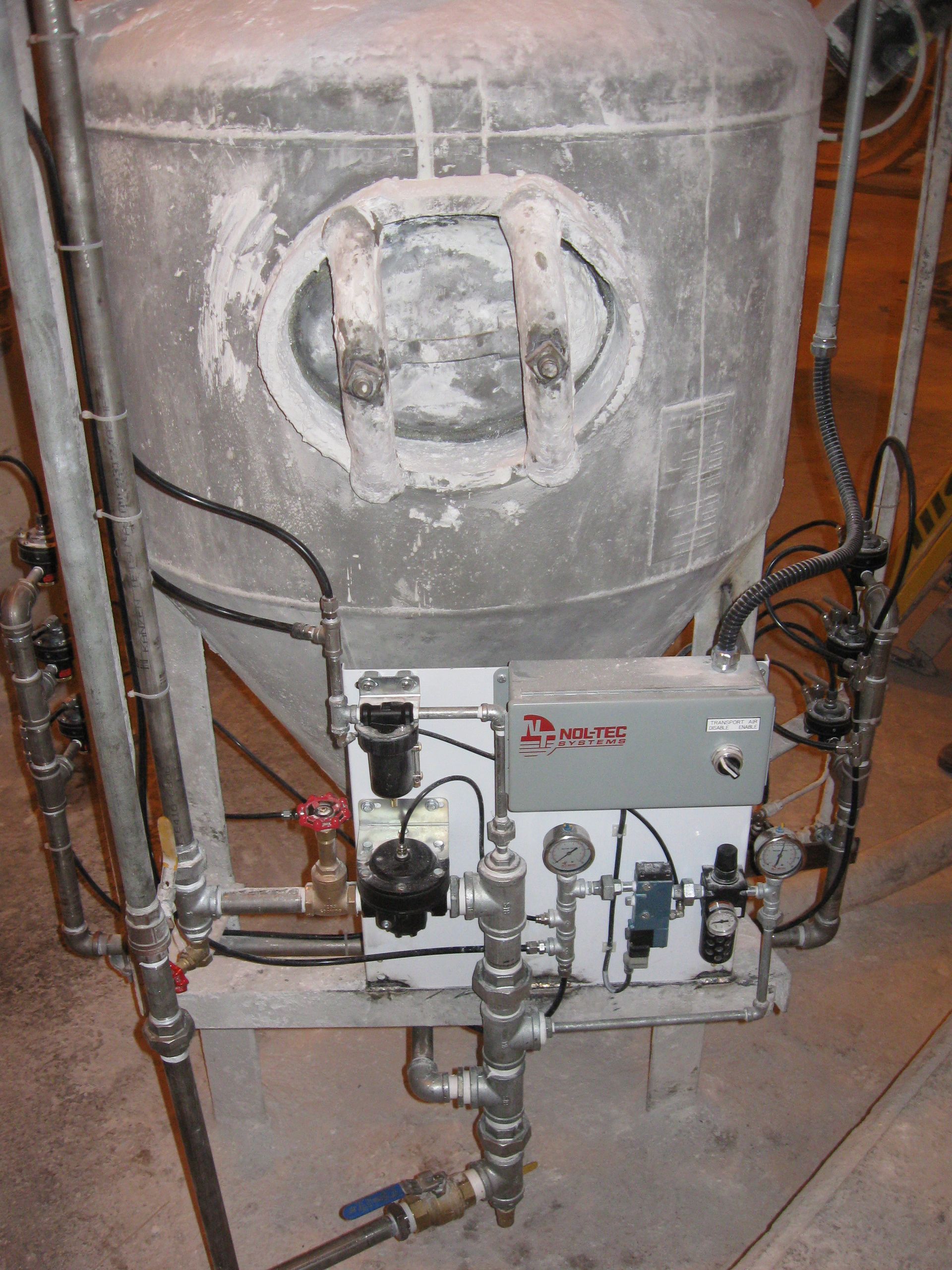

Matrix Engineering restored a 20 year old Dense Phase Transport System back to working order at its original rate capacity.  Ironically, this was one of the first dense phase systems that our engineers worked with during the original installation in 1990. We were pleased to be able to return to this system and make the repairs which primarily consisted of replacement of outdated pneumatic air controls.


The extent of repair was relatively inexpensive, especially when compared the overall efficiency improvement, return to design rate, and the reduction in compressed air consumption.


Matrix physically performed all of the mechanical service and repairs and worked closely with plant personnel to make any electrical changes to the system. This is a prime example of our “hand’s on” nature.
